CHI TIẾT SẢN PHẨM |
 |
|
|
|
|
|

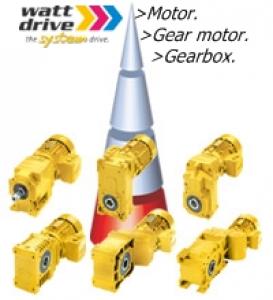

WATT MAS
Watt Drive offers a complete program of electric, electronic and mechanical drive technology both in the form of individual units or as a complete drive system.
We offer perfectly coordinated standard products!
By expanding on top of our modular gear system we are able to meet the highest demands of our customers with the most modern motor and inverter technologies. Our special tooth formation and surface finish guarantee the highest bearing capacity resulting in smaller gear wheels at the same torque. In this manner smaller gear units are possible with an excellent power spectrum. Watt Drive geared motors really are spectacular!
|
| |
|
|
 |
Modular Drive System MAS
• Drive System: from Watt Brain Power, gear units, motors and electronic drives • Modular Drive Electronics: with frequency inverters for open loop, sensor less vector, closed loop, torque and position control as well as various bus systems. • Modular Motor Systems: including system motors and servomotors based on modular design concepts that can be simply tuned to meet the needs of the customer. • Modular Gear System: in particular for servo drive systems, low backlash, quiet, compact We realize our customers’ individual requests! The innovative Watt gear and motor systems enable individual customer solutions at the highest quality that are quickly available. You receive a one-stop drive system solution that meets all the demands required of drive technology. A wide range of services, competent advice, engineering, project scheduling, project management, setting up operations and support complete our extensive offerings.
|
| |
|
Mechatronic
Watt Mechatronis - Geared motor systems: Mechatronics (a thought-up word taken from mechanics and electronics) stands for the technical connection between the disciplines of electro-technics, electronics, informatics, engineering, drive technology and construction and can be applied wherever an intelligent link can be made between these areas resulting in an increase in the overall functionality of a product, or if costs can be optimised. Watt Drive implements these links to the individual disciplines in the new software "cat4CAD 4.0", where perfectly coordinated components from the Watt portfolio are combined together to form a reliable system.
|
| |
|
Gear units and geared motors
|
| |
|
Helical geared motors
The Uniblock design - foot and flange execution in one case! Uniblock design for foot and flange mounting. Gear case machined on all sides for universal application. Revolutionary new gearing geometry here and in all the other models results in exceptional running smoothness. For special environmental conditions the gear unit can be fitted with two shaft seals. Technical Data:
| Number of sizes: |
18 |
| Power range: |
0.12 - 55kW |
| Output torque range: |
27 - 14,000Nm |
| Ratio: |
0.8 - 8,600 |
| Output option: |
output shaft
|
| Assembly/mounting: |
uniblock, flange, foot |
|
|
Shaft mounted geared motors
The drive for conveyor technology! In addition to the benefits of the parallel-mounted geared motor, this is an extremely economical model, especially for shaft and flange mounting. Special double-chamber shaft seals developed by Watt Drive that guarantee complete leak tightness are used as standard, as in the parallel-shaft geared motor. Technical Data:
| Number of sizes: |
5 |
| Power range: |
0.12 - 22kW |
| Output torque range: |
48 - 2,800Nm |
| Ratio: |
0.8 - 4,000 |
| Output option: |
output shaft, output shaft on both sides, hollow shaft, hollow shaft with shrink disc, agitaor drive execution |
| Assembly/mounting: |
support, flange |
|
|
Parallel shaft geared motors
Various mounting and possible applications by Uniblock - gear case! The uniblock gear case machined on all sides, the particularly stable case and minimum outside dimensions enable diverse mounting options and applications. As a result, these motors often form an integral part of our customers’ machine designs. High precision manufacturing and top gearing quality guarantee minimum backlash in Watt Drive gear units. Technical Data:
| Number of sizes: |
4 |
| Power range: |
0.12 - 55kW |
| Output torque range: |
2,800 - 14,000Nm |
| Ratio: |
6 - 18,000 |
| Output option: |
output shaft, output shaft on both sides, hollow shaft, hollow shaft with shrink disc, agitator drive execution |
| Assembly/mounting: |
uniblock, flange |
|
| |
|
Helical worm geared motors
Tough, compact, eye-catching ! Due to the unique combination of newly developed worm wheel material with special lubricants, extreme precision and optimized shapes, this powerful motor achieves comparatively high levels of efficiency and torque. The case machined on all sides enables diverse mounting options. Double-chamber shaft seals made of HNBR are used as standard, guaranteeing complete leak tightness. Technical Data:
| Number of sizes: |
7 |
| Power range: |
0.12 - 7.5kW |
| Output torque range: |
30 - 1,400Nm |
| Ratio: |
3 - 3,400 |
| Output option: |
output shaft, output shaft on both sides, hollow shaft, hollow shaft with shrink disc |
| Assembly/mounting: |
uniblock, flange, torque arm |
|
|
Helical bevel geared motors
Compact, eye-catching, unique for limited space issue ! The compact and structureoptimized gear case of the helical bevel gears distinguish themselves by being machined on all sides and are therefore, ready for a variety of mounting options and applications. The unique motorposition provides an almost flat and easy to mount on ”machine-interface”. In the basic executions the gear boxes are designed as 2 stage gears up to the size K. 75 (1.250Nm). The bigger gear boxes, beginning with the K. 77 (1.500Nm) are designed as 3 stage gears. Technical Data:
| Number of sizes: |
10 |
| Power range: |
0.12 - 55kW |
| Output torque range: |
100 - 14,000Nm |
| Ratio: |
5.5 - 8,600 |
| Output option: |
output shaft, output shaft on both sides, hollow shaft, hollow shaft with shrink disc, agitator drive execution |
| Assembly/mounting: |
uniblock, flange, torque arm |
|
|
Angle parallel shaft geared motors
Ruggedness for hard industry application! These angle-parallel-shaft gears are machined on all sides and the primary gear unit with motor can be turned through 90°. As a result the best motor position for the application can be found. This feature also allows the housing to be ultra-flat. In addition, there are models with support noses for shaft-mounted applications and flanges for agitators, etc. Technical Data:
| Number of sizes: |
5 |
| Power range: |
0.12 - 45kW |
| Output torque range: |
1,200 - 10,000Nm |
| Ratio: |
10 - 7,100 |
| Output option: |
output shaft, output shaft on both sides, hollow shaft, hollow shaft with shrink disc, agitator drive execution |
| Assembly/mounting: |
uniblock, support, flange |
|
| |
|
System adapter
The Watt system adapter enables all motors commonly found on the market to be built on the complete MAS gear system. The drive motors are added on by using the adapter, without having to open the gears. The motors do not need to be oil-tight.
The system adapter enables the following to be added:
• Servo motors, with or without key
• Nema motors (standard measurement Type C flange
fixture)
• IEC motors (model type B5 according to DIN 42677)
Nema - Adapter (NA):
Addition of NEMA - motor size 56 - 286 is possible.
IEC - Adapter (IA):
Addition of IEC - motor size 63 - 225 is possible.
Servo - Adapter (SA):
• Extension of all popular servo motors:
• Play-free Connection
• Unlimited use of the Watt gear system is possible
|
|
Input shaft
Gear systems with input unit (-WN) allow the running of WATT MAS gear unit via the extension of drive unit elements such as coupling, belts or chains.
This gear system with input shafts is an economical solution if the input motor cannot be assembled directly next to the gear unit.
Possible field of application:
• As subsequent ratio for shafts that are already slow or running at engine speed!
• Manual input for regulating or adjusting movements. • To synchronize mechanically, for multiple drive units by using a common input shaft.
• Also for gear units that are driven from output(turbine gear units for generator drive units).
• For gear units that are under considerable load, such as in the field of chopper machines, whereby liquids orcouplers
for excessive loads between the motor and gear unit are implemented!
|
|
Worm geared motors
Worm geared motors for small power range. The WATT small worm gear unit adapt themselves concerning UNIBLOCK DESIGN optimally in the MAS geared motor program. The units have on all sides different fixing possibilities and enable an easy assembling for the customer. Other drive configurations can be designed by use of built-on accessories (e.g. torque arm and output flanges). The housings are made in lightweight construction out of aluminium die-cast. Motor attachment is realised in general by means of IEC adapter B5 or B14A. Technical Data:
| Number of sizes: |
5 |
| Power range: |
0.12 - 2.2kW |
| Output torque range: |
17 - 230Nm |
| Ratio: |
5 - 100 |
| Output option: |
output shaft, output shaft on both sides, hollow shaft, hollow shaft with shrink disc |
| Assembly/mounting: |
uniblock, flange, torque arm |
|
| |
|
EUSAS-System motors
A Motor for 100Hz Characteristic and Any Voltage Worldwide !
WATT EUSAS motors are top quality three-phase AC industrial models from Watt Drive’s customer-oriented modular WATT MAS motor system.
EUSAS stands for EUROPA - USA - ASIEN and means that the wide voltage range and simple voltage selector in the terminal box enable the motor to be operated with virtually any supply voltage and frequency worldwide.
|
| |
|
Motor System
The WATT Drive system motor guarantees quick and economic availability in all possible units due to is sophisticated components.
Standardized motor modules:
• Spring loaded brake:
• Varying voltage einding
• Forced cooling
• Motor protection
• Speed measurement
• Special bearings
• EUSAS Protection
• Connections/switches
• Suppression components
• Custom Paint
• Mechanical options
|
|
Asynchronous servo motors
The Watt asynchronous servo motor is an evolutionary development based on the proven Watt-EUSAS-Motor. The new motor is now optimized for industrial drive tasks, requiring closed loop speed control in frequency inverters and having special demands:
• high dynamic during acceleration and deceleration as well on the compensation of speed deviations
• high speed accuracy
• high mechanical and electrical robustness of the whole drive system
• large speed range
• high accuracy of running (also at low speed)
|
|
Features
of the EUSAS System motors at a glance:
• Varying-voltage winding:
from 3x190 - 3x690V at 50/60Hz with 9 terminals
• 87/100Hz characteristic in frequency inverter operation
• Voltage selection
• High efficiency to eff2
• Low weight
• Tropic-proof insulation system
• Operating temperature -30°C to +60°C
• Rating plate with 50/60Hz data
• Reinforced bearings
• High strength rotor shaft
• Rotor shaft prepared for mounting encoders,
tachometers, backstops etc.
• Protection Class IP55
• Insulation Class F (Class B capability)
|
| |
|
Integral motors
The EUSAS integral motor is part of the Watt motor system. All features and benefits have been implemented and further developed. The motor is robust, in keeping with the high demands made by the industry and in the short term is capable of excessive loads. The motors are equipped with a reinforced suspension and are directly built into the gear units, resulting in a very short, compact design. Technical Data:
| Possible number of poles: |
2-, 4-, 6-, 8-, 4/2-,
8/4-, 6/4-, 6/2, 8/2-pole |
| IEC size: |
63 - 250 |
| Performance area 2-pole: |
0,18 – 1,5kW |
| Performance area 4-pole: |
0,12 – 55kW |
| Performance area 6-pole: |
0,09 – 55kW |
| Performance area 8-pole: |
0,04 – 22kW |
|
|
IEC standard motors
Watt standard motors adhere to the following IEC standards: Type WAG model B3 - (IEC - standard 72-1 DIN 42673) Type WAF model B5 - (IEC - standard 72-2 DIN 42677) Type WAC model B14 - (IEC - standard 72-2 DIN 42677) The options in the motor system are also available in Watt norm motors. Technical Data:
| Possible number of poles: |
2-, 4-, 6-, 8-, 4/2-,
8/4-, 6/4-, 6/2, 8/2-pole |
| IEC size: |
63 - 250 |
| Performance area 2-pole: |
0,18 – 1,5kW |
| Performance area 4-pole: |
0,12 – 55kW |
| Performance area 6-pole: |
0,09 – 55kW |
| Performance area 8-pole: |
0,04 – 22kW |
|
|
|
| |
|
Drive Electronics
The frequency inverter programs S-line, B-line, E-line and P-line consistently follow the same principle in the range of 0.2 to 90 kW as the Watt Drive modular drive systems. These frequency inverters distinguish themselves through their excellent control features, compact size, ease of use and very good communication skills.
The differences between the four programs lie primarily in the control features and thus the starting torque and dynamic performance achieved. The S models are V/F controlled, while the B, E and P range consists of vector-controlled frequency inverters. The E-line offers implemented EMC filters and brake choppers in series, as well as many possible extensions for the digital and analog in- and outputs. Moreover an integrated SPS control is available. The P range features distributed intelligence e.g. for positioning tasks. This complete range of modular drive control units offers the technically best and most cost-effective drive solution for any requirement, from simple open loop control to top dynamic closed loop process control and positioning applications. Watt Drive is able to offer a complete range of modular drive control units and the most cost-effective drive solution for any requirement, from simple control and drive tasks to the control of top dynamic processes and positioning.
|
| |
|
Inverter E-line VFD-E
The modular frequency inverter VFD-E. From the experiences made with S- and B-line there has been developed a new motor drive. The targets were, integrated line filter and brake choppers, as well as an easy selection and handling, sturdiness and a modular drive philosophy, as to find an optimal solution in both economical and technical aspects on every demand for a motor drive. Technical Data:
| Voltage |
1 ~ 115V, 1 ~ 230V
3 ~ 400V/460V |
| Control |
U/f + SVC + VC |
Area of performance
single-phase |
0.25kW - 2.2kW
[1/3HP up to 3HP] |
Area of performance
three-phasetd> |
0.4kW - 22kW
[1/2HP up to 30HP] |
|
|
Inverter S-line VFD-S
Integrated flexibility at a low price. The frequency inverter VFD-S from the S-line program is particularly suitable for applications whereby cost-effectiveness plays a central role. However, it also offers many other opportunities, which are outstanding in this category, for example, motor slip compensation, parametric U/f characteristics, etc. Technical Data:
| Voltage |
1 ~ 230V
3 ~ 400V/460V |
| Control |
U/f (with slip compensation) |
Area of performance
single-phase |
0.25kW - 2.2kW [1/3HP bis 3HP] |
Area of performance
three-phase |
0.75kW - 2.2kW [1HP bis 3HP] |
|
|
Inverter B-line VFD-B
The multi-talent for high torque. The VFD-B power packet from the B-line range with the new sensorless vector control (SVC) provides a superior torque for demanding applications consistently over the whole performance range. Technical Data:
| Voltage |
1 ~ 230V
3 ~ 400V/460V |
| Control |
U/f + SVC + VC |
Area of performance
single-phase |
0.75kW - 2.2kW
[1HP bis 3HP] |
Area of performance
three-phase |
0.75kW - 75kW
[1HP bis 100HP] |
|
| |
|
Inverter P-line P6000
The unique, intelligent all-rounder. The frequency inverter P6000 enhances the functionality of the frequency inverter range. With its modular design, flexible programmability and integrated positioning control, the user has the possibility to transfer control intelligence to the inverter and therefore relieve SPS for more integral tasks. Technical Data:
| Voltage |
1 ~ 230V and 3 ~ 400V/460V |
| Control |
U/F, Torque- and Position control |
Area of performance
single-phase |
0,75kW - 1,5kW [1HP bis 2HP] |
Area of performance
three-phase |
0,75kW - 90kW [1HP bis 120HP] |
|
|
Control and display devices
To aid control of inverter systems, a number of top quality, high performance and universally operated products are available in the form of a range of operator panels. They all enjoy extreme ease of use and high functionality, while the concept on which they are based is attractive and easily adaptable.
There are 4 different operator panels, which differ in use, memory size and display. All four are run using the same program software for pre-settings and a pre-configured interface to the frequency inverters in the Profi-line series. Communication can run via the RS232 or via CANopen - both interfaces are standard on board components of the P6000 frequency inverter.
|
|
Software
The program software “VFDSoft” and PROFI Tool” allow programming of the inverter using a PC.
The “VFDSoft” is for programming the frequency inverter series S-, B and E-line. With the "WPLSoft" it´s possible to programming the internal SPS function. Only for E-line. The frequency inverter series P-line P6000 is parameterized and programmed with “PROFI TOOL”.
|
| |
|
Special solutions
If you are looking for a complete drive system or single components that cannot be implemented from a standard model, then we are the right people to contact.
Our product range can be customized by our application engineers to suit your requirements.
The already described special drive units were developed according to customer requirements. Increased customer use while observing the highest quality standards has top priority.
Our drive unit solutions are in operation in almost all four corners of the world and receive acclaim due to their high reliability and long product life.
|
| |
|
Water-cooled gear units
Water-cooled helical bevel gear units KUA 75A as roller conveyor gears units. All inner parts are taken from the MAS 2000 program. The casing was designed according to an individual customer request. The extension of the roller conveyor motor was realized by using a special adapter. Technical data:
| Power |
- |
| Output torque |
max. 1250Nm |
| Ratio |
23,75 |
| Mounting position |
H50 |
|
|
Stage, theatre drives
Watt Drive angle parallel shaft geared motor units for the Hangzhou opera house. For this project Watt angle parallel shaft gears were used as the gear unit, which were realised in accordance with the specific requirements of the customer. The particularly high demands in quality of stage technology (noise, operational safety, …) were the deciding factors that the extensive Watt Drive product portfolio were able to fulfil completely. Technical data:
| Power |
0,12 - 45kW |
| Output torque |
1200 - 10000Nm |
| Ratio |
different ratios |
| Mounting position |
H30 |
|
|
Special helical worm geared motor
Special helical worm geared motor with safety slipping clutch and Watt EUSAS system motor for the snow production plant "Gemini Frau Holle S10" at our customer “Fa. HDP Hochdruckprodukte" based in Mürzzuschlag-Hönigsberg.
Technical gear data:
| Power |
0,04 KW |
| Output torque |
max. 50 Nm |
| Ratio |
1333,33 |
| Output speed |
0,47 rpm |
| Mounting position |
V114 |
Technical motor data:
| Power |
15 kW |
| Speed |
1445 rpm |
| Mounting position |
B5 |
| Protection |
IP55/F |
|
| |
|
Roller table drives
for cooling sections in steel plants -
Parallel shaft gear unit FU 130S
All inner parts are taken from the MAS 2000 program. The casing was designed according to an individual customer request in ductile iron EN-GJS-400-15 (GGG 40). The direct attachment of the roller conveyor motor results in very compact design.
Technical gear data:<
|
|
| |
|
|
|
|
|
| |
