ĐỘNG CƠ GIẢM TỐC

- All common types
- Variety of inputs: with electrical motor, with input flange for IEC, NEMA and SERVO motors, with input flange and combinated
- Variety of fixing methods: feet mounted, flange mounted, shaft mounted and combinated

Helical Geared Motor Power: 0,12-90 kW Torque: 48-14.000 Nm Ratio: 1-8.600 Uniblock design for foot and flange mounting. Gear case machined on all sides for universal application. Revolutionary new gearing geometry here and in all other models results in exeptional running smoothness. For special environmental conditions the gear unit can be fitted with two shaft seals.
Paralel-Shaft Geared Motor Power: 0,12-90 kW Torque: 400-14.000 Nm Ratio: 4-18.000 The uniblock gear case machined on all sides, the particularly stable case and minimum outside dimensions enable diverse mounting options and aplications. As a result these motors often form an integral part of our customers' machine designs. High precision manufacturing and top gearing quality guarantee minimum backflash in Watt Drive gear units.
Shaft-Mounted Geared Motor Power: 0,12-22 kW Torque: 48-2.800 Nm Ratio: 1-4.000 In addition to the benefits of the parallel-mounted geared motor, this is an extreamely economical model, especially for shaft and flange mounting. Special double-chamber shaft seals developed by Watt Drive that guarantee complete leak tightness are used as standard, as in the paralel-shaft geared motor.
Helical Worm Geared Motor Power: 0,12-7,5 kW Torque: 70-1.300 Nm Ratio: 3-3.400 Due to the unique combination of newly developed worm wheel material with special lubricants, extreme precision and optimized shapes, this powerful motor achieves comparatively high levels of efficiency and torque. The case machined on all sides enables diverse mounting options. Double-chamber shaft seals made of HNBR are used as standard, guaranteeing complete leak tightness.

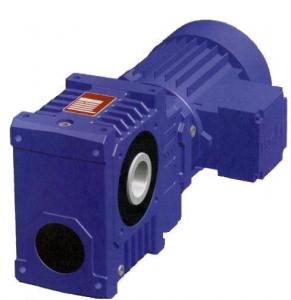

Bevel Geared Motor Power: 0,12-90 kW Torque: 100-14.000 Nm Ratio: 6-8.600 The compact and structure-optimized gear case of the helical bevel gears distinguish themselves by being machined on all sides and are therefore, ready for a variety of mounting options and aplications. The unique motorposition provides an almost flat and easy to mount on "machine-interface". Various standard shaft executuins and double-chamber-shaft seals, developed by Watt Drive, are ready for use. Shaft and flange dimensions are equal to our helical gears.
Angle Parallel Shaft Geared Motor Power: 0,12-45 kW Torque: 1.200-10.000 Nm Ratio: 10-7.100 These angle parallel shaft gears are machined on all sides and the primary gear unit with motor can be turned through 90o. As a result the best motor position for the application can be found. This feature also allows the housing to be ultra-flat. In addition, there are models with support noses for shaft mounted applications and flanges for agitators, etc.
